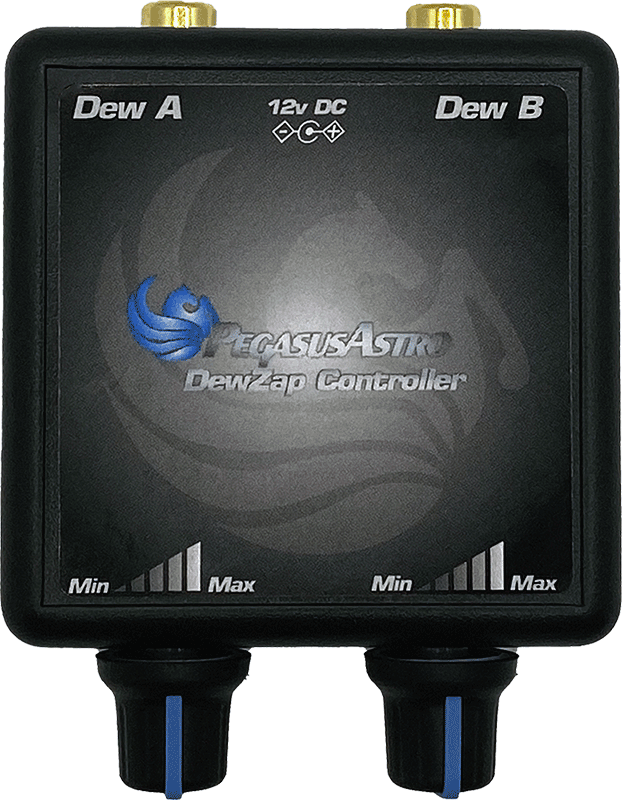

DewZap


DewZap is our Dual Channel Dew Heater Controller. Simple to use, powerful and very compact is your best companion against the dew during long astro – nights.

dewzap2

Two individual digital outputs for dew strips

DewZap has two individual digital RCA outputs. You can control its output by turning each knob on the top of the controller.

Pulse Width Modulation Duty Cycle Control

Controller was built with modern digital electronics and fully supports duty cycle (PWM) control.

Zero to 100% heater control

Knobs can drive Pulse Width Modulation duty cycle from zero to 100%

Ten (10) amps current capacity (5 amps per channel)

Powerful mosfets on each output can provide easily 5Amps per channel. There are no voltage drops there.

dewzap1

Reverse polarity protected.

Device is protected from reverse polarity.

LED Operation indicator

A led indicator in front of the faceplate ensures controller is operational.

Detachable fused power cord

A detachable 1.8m fused power cord (1.8m length) is provided. The fuse is at 8 Amps.

cigcord

2 Years warranty

Covers the controller device

In the box

  • DewZap Controller
  • Cigarette Lighter Power Cord (1.8m length)  – 8A slow fused

Technical Specifications

Supply Voltage12V DC Operation
OutputSame input voltage in Pulse Width Modulation Duty Cycle
ChannelsDual (2)
Power Outlets2 x RCA
Power Input Connector2.1mm Centre Positive Socket
Dimensions66 mm x 66 mm x 28 mm
Detachable fused power cord A Slow fuse is at 8Amps, located on tip. Cord has 1.8m length

Documentation

DewZap Quick Guide
