Adapters
We provide the following black anodized (matte) aluminium adapters

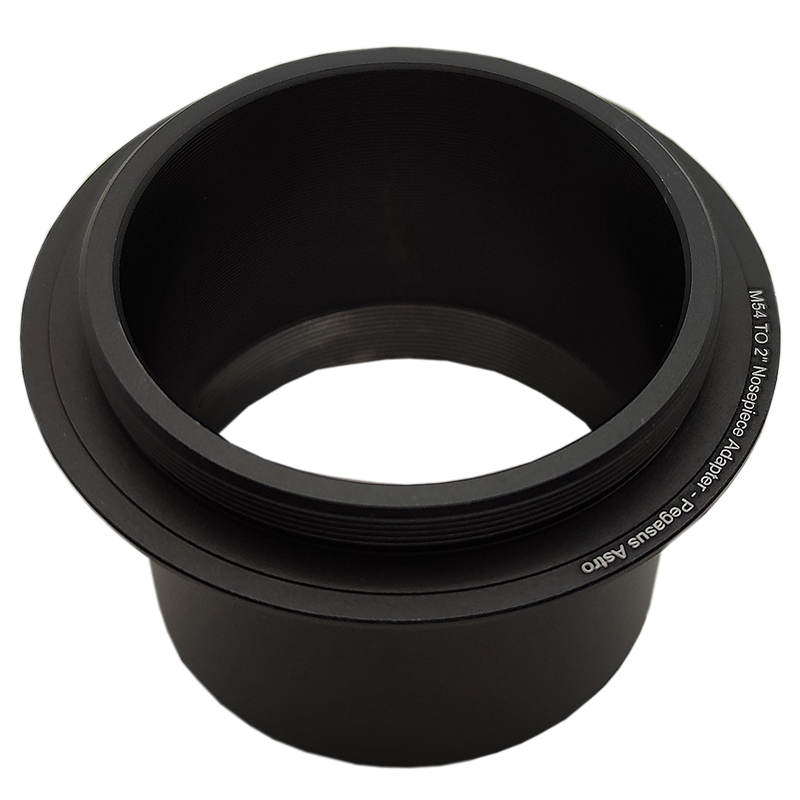

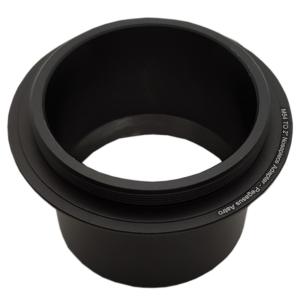

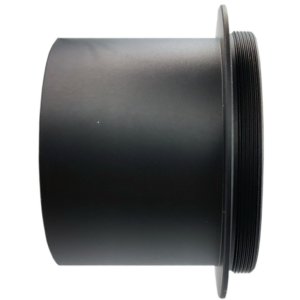

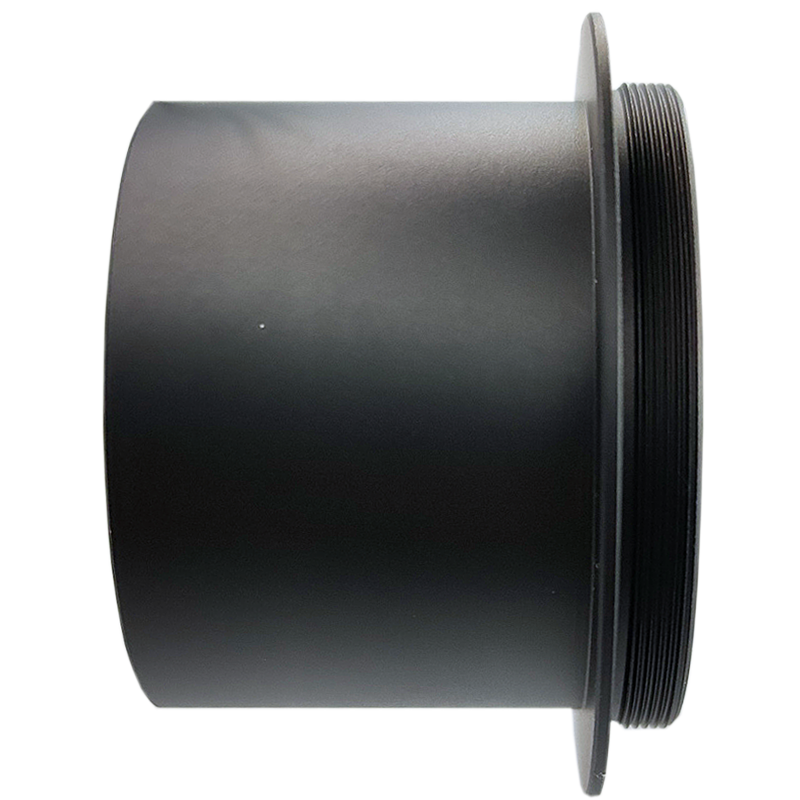

M54 Male to 2” Nosepiece (inner hole with 2” filter thread)
SKU: PEG-ADAPT-M54M-2NP
- Total Nosepiece Length :35mm
- Adapter (Backfocus) Thickness : 1.5mm
- Thread: Pitch 0.75mm / 4 mm length
- Includes inner hole for 2” filter thread (M48)

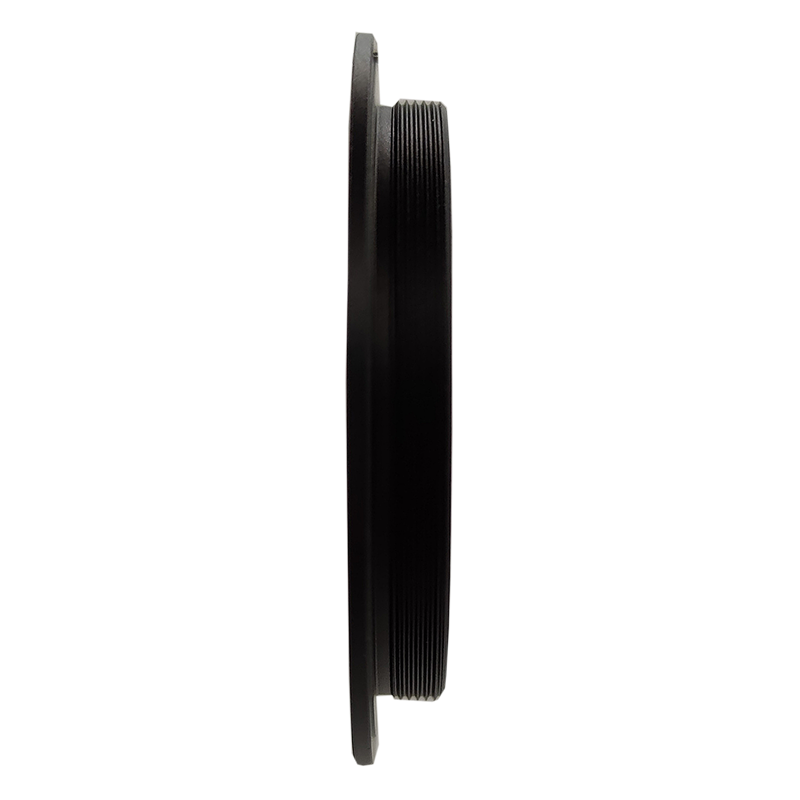

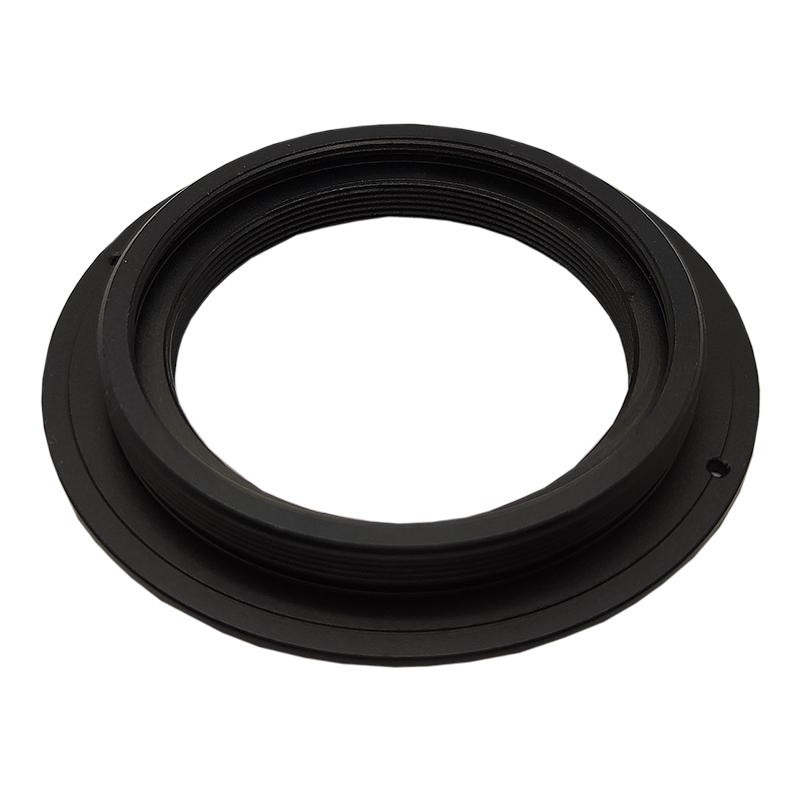

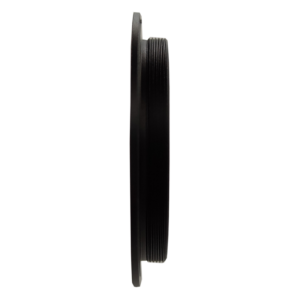

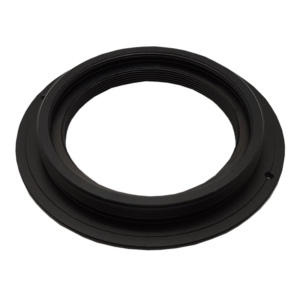

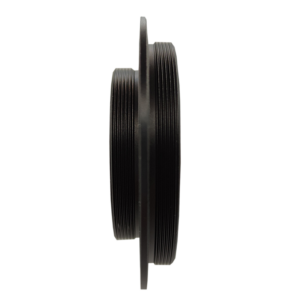

M54 Male to M42 Female
SKU: PEG-ADAPT-M54M-M42F
- Adapter (Backfocus) Thickness: 2.0mm
- Thread: Pitch 0.75mm / 4 mm length
- M54 side has a M48 internal thread

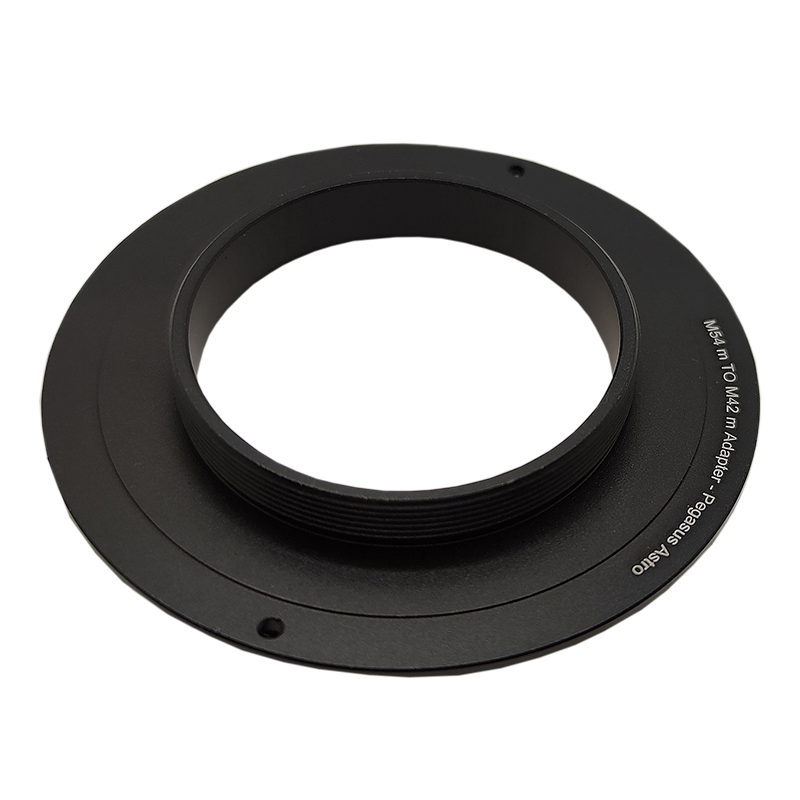

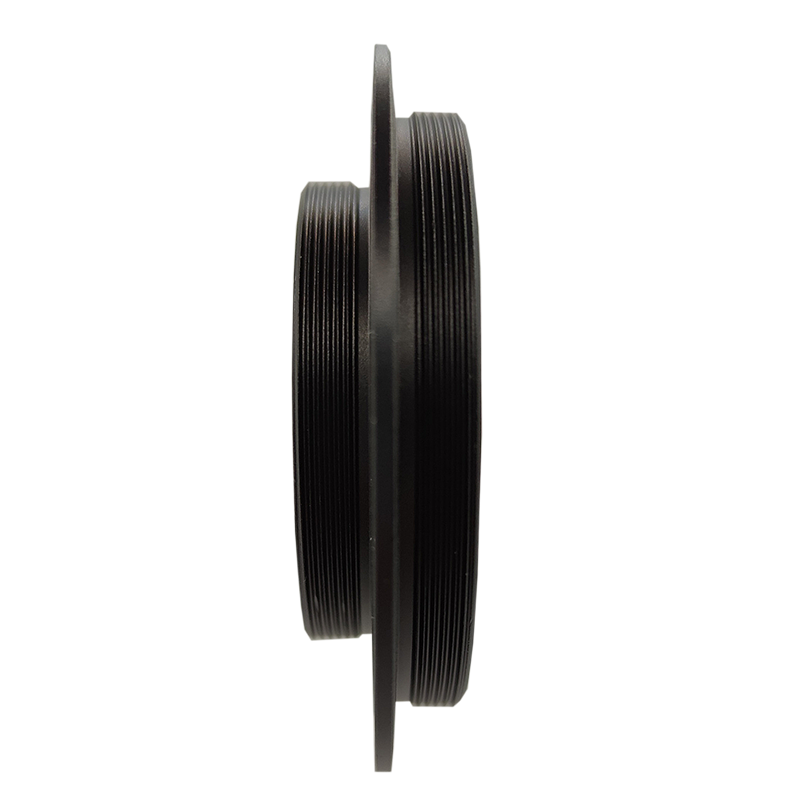

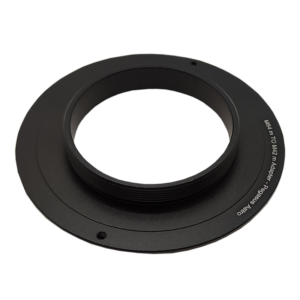

M54 Male to M42 Male
SKU: PEG-ADAPT-M54M-M42M
- Adapter (Backfocus) Thickness: 2.0mm
- Thread: Pitch 0.75mm / 4 mm length
- M54 side has a M48 internal thread

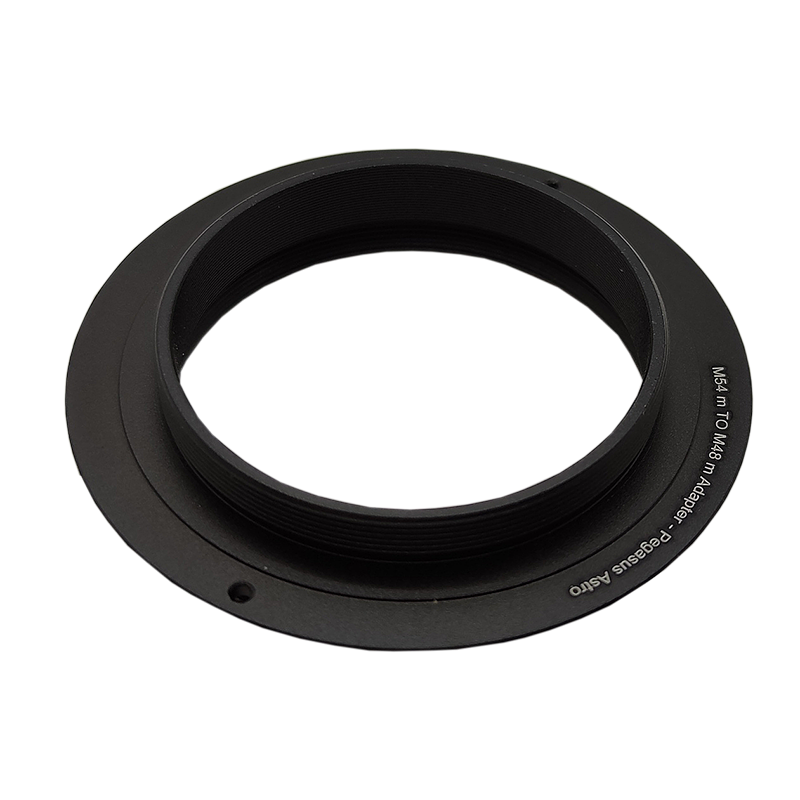

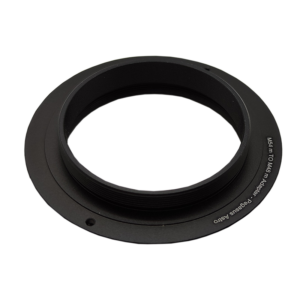

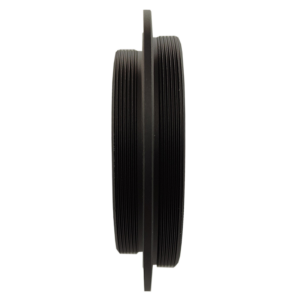

M54 Male to M48 Male
SKU: PEG-ADAPT-M54M-M48M
- Adapter (Backfocus) Thickness: 2.0mm
- Thread: Pitch 0.75mm / 4 mm length
- M54 side has a M48 internal thread

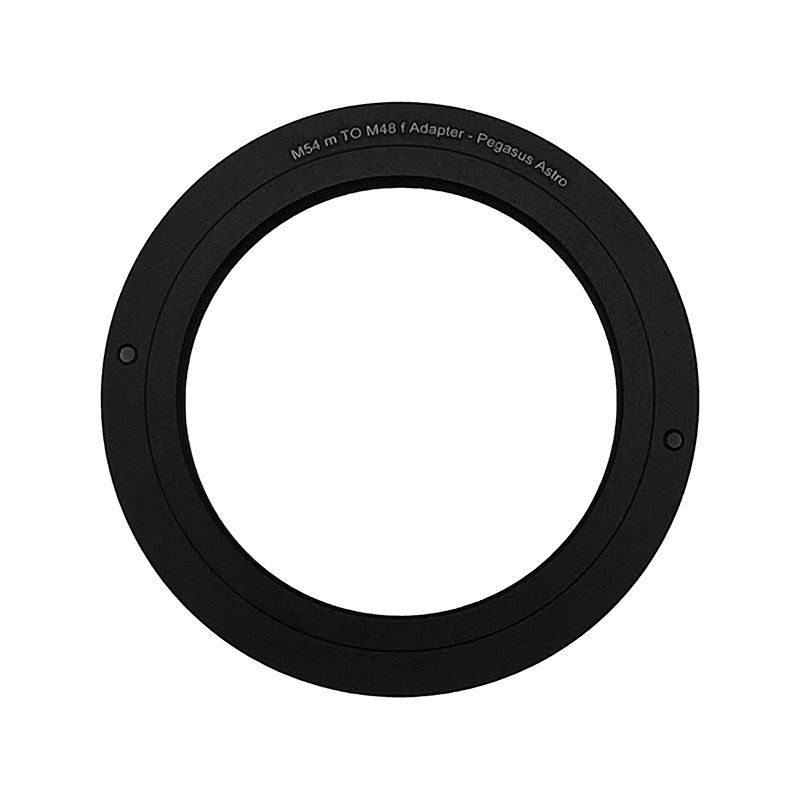

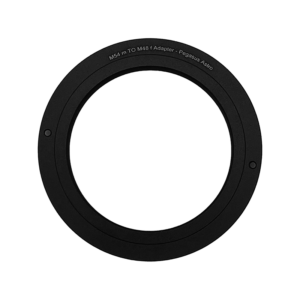

M54 Male to M48 Female
SKU: PEG-ADAPT-M54M-M48F
- Adapter (Backfocus) Thickness: 2.0mm
- Thread: Pitch 0.75mm / 4 mm length

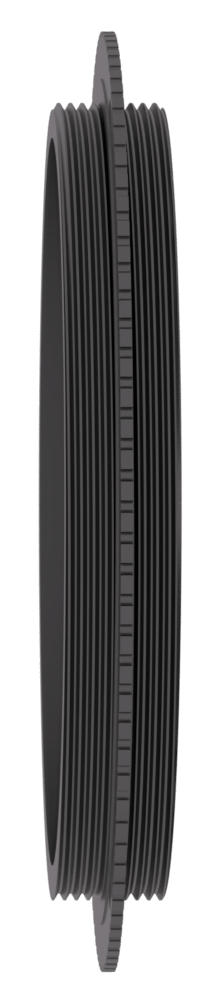

M68 Male to M68 Male (inner hole with M54)
SKU: PEG-ADAPT-M68M-M68M
- Adapter (Backfocus) Thickness: 1.4 mm
- Thread: Pitch 1.0mm / 4 mm length
- Inner hole with M54 / 0.75mm

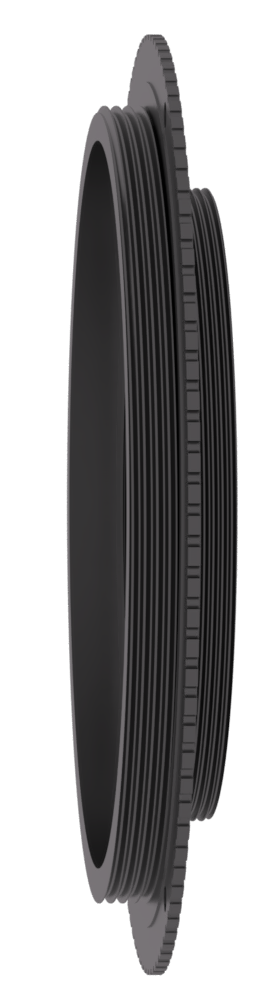

M68 Male to M54 Male (inner hole with M48)
SKU: PEG-ADAPT-M68M-M54M
- Adapter (Backfocus) Thickness: 1.4 mm
- M68 Thread: Pitch 1.0mm / 4 mm length
- M54 Thread Pitch 0.75mm / 4mm length
- Inner hole with M48 / 0.75mm

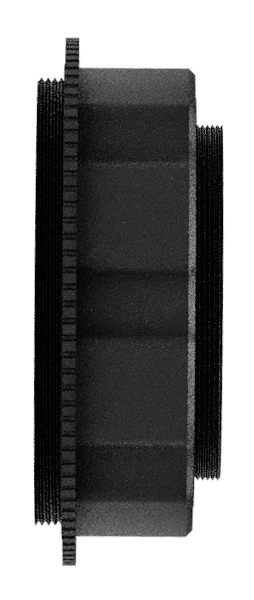

M68 Male to M54 Male – length 20mm (inner hole with M48)
SKU: PEG-ADAPT-M68M-M54M-20
- Adapter (Backfocus) Thickness: 20 mm (backfocus)
- M68 Thread: Pitch 1.0mm / 4 mm length
- M54 Thread Pitch 0.75mm / 4mm length
- Inner hole with M48 / 0.75mm

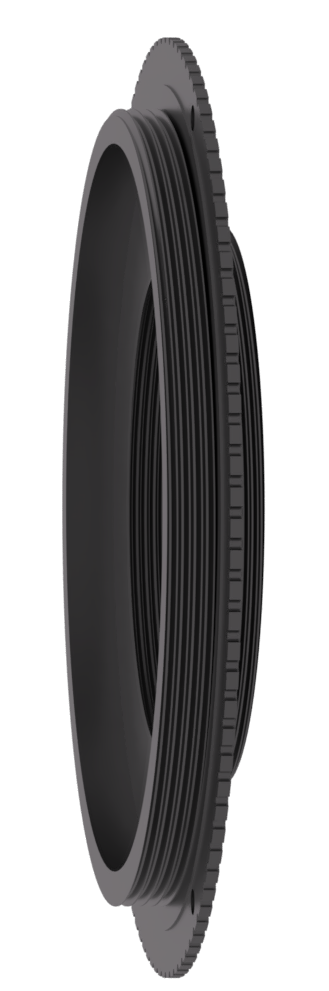

M68 Male to M48 Male (inner hole with M42)
SKU: PEG-ADAPT-M68M-M48M
- Adapter (Backfocus) Thickness: 1.4 mm
- M68 Thread: Pitch 1.0mm / 4mm length
- M48 Thread Pitch 0.75mm / 4mm length
- Inner hole with M42 / 0.75mm

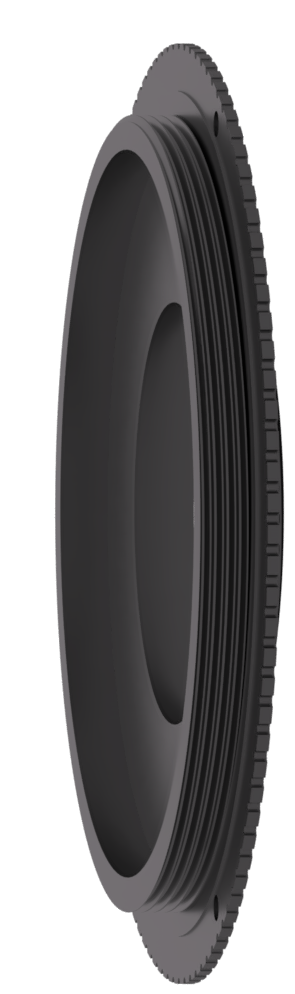

M68 Male to M42 Male
SKU: PEG-ADAPT-M68M-M42M
- Adapter (Backfocus) Thickness: 1.4 mm
- M68 Thread: Pitch 1.0mm / 4mm length
- M42 Thread Pitch 0.75mm / 4mm length

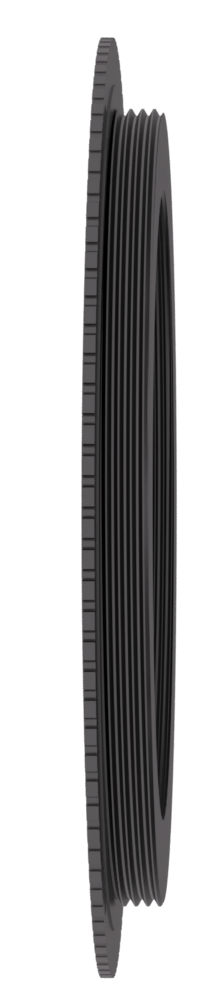

M68 Male to M54 Female
SKU: PEG-ADAPT-M68M-M54F
- Adapter (Backfocus) Thickness: 1.4 mm
- M68 Thread: Pitch 1.0mm / 4mm length
- M54 Thread Pitch 0.75mm
M68 Male to M48 Female
SKU: PEG-ADAPT-M68M-M48F
- Adapter (Backfocus) Thickness: 1.4 mm
- M68 Thread: Pitch 1.0mm / 4mm length
- M48 Thread Pitch 0.75mm

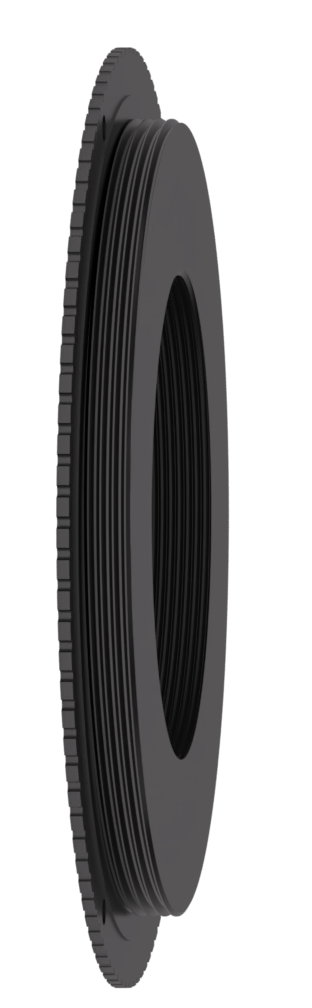

M68 Male to M42 Female
SKU: PEG-ADAPT-M68M-M42F
- Adapter (Backfocus) Thickness: 1.4 mm
- M68 Thread: Pitch 1.0mm / 4mm length
- M42 Thread Pitch 0.75mm

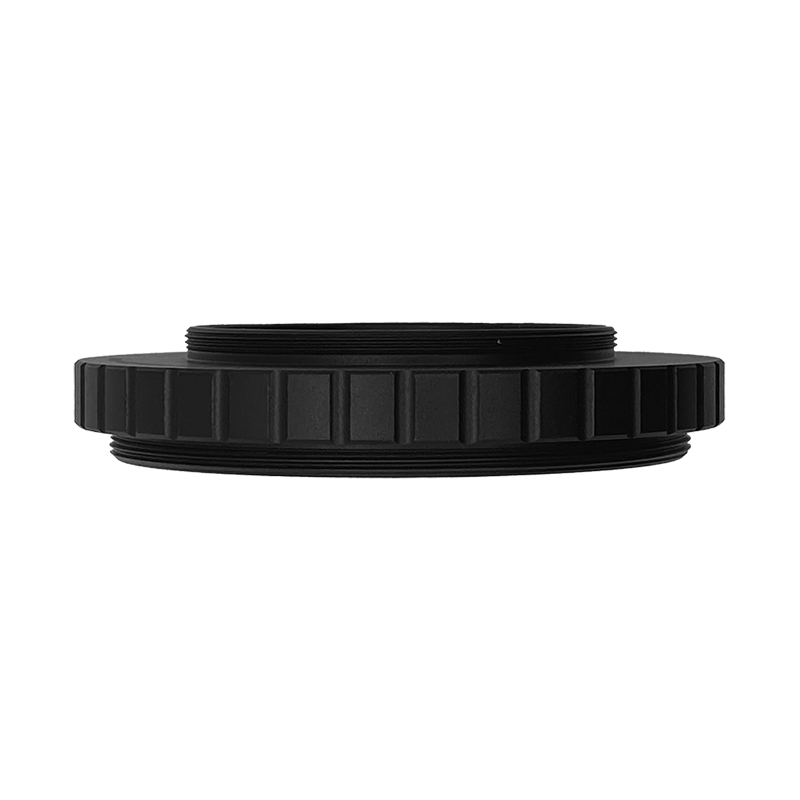

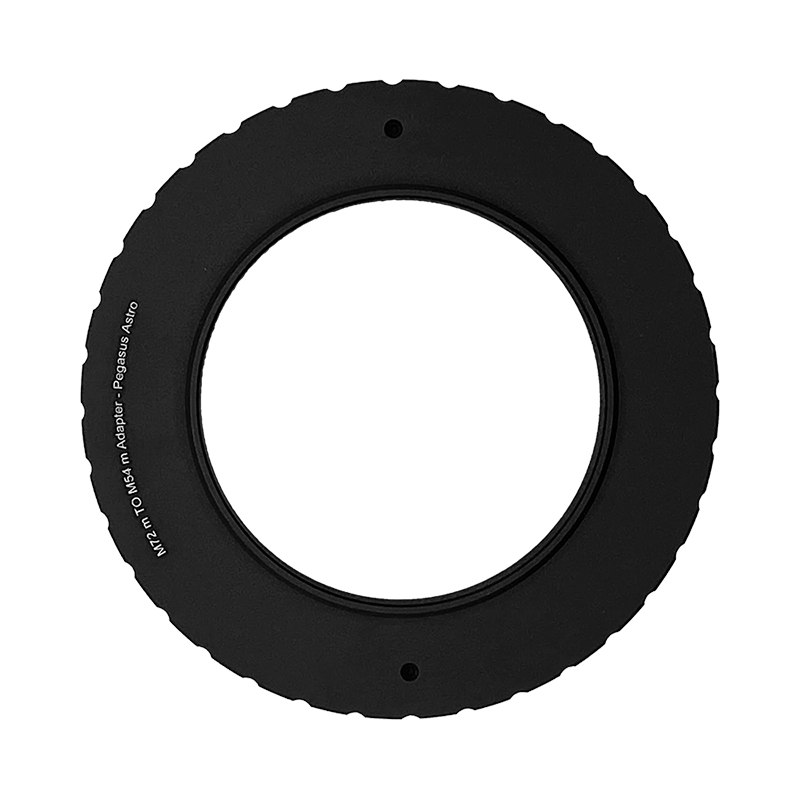

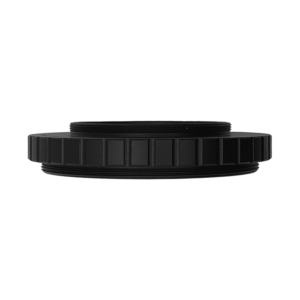

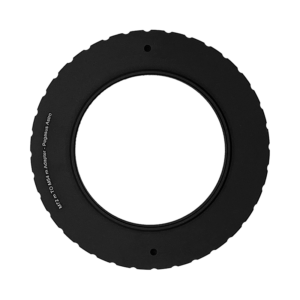

M72 Male (Takahashi thread) to M54 Male
SKU: PEG-ADAPT-M72M-M54M
- Adapter Thickness: 8.0mm
- Thread M72 Takahashi: Pitch 1.0mm / 4 mm length
- Thread: M54 Pitch 0.75mm / 4 mm length

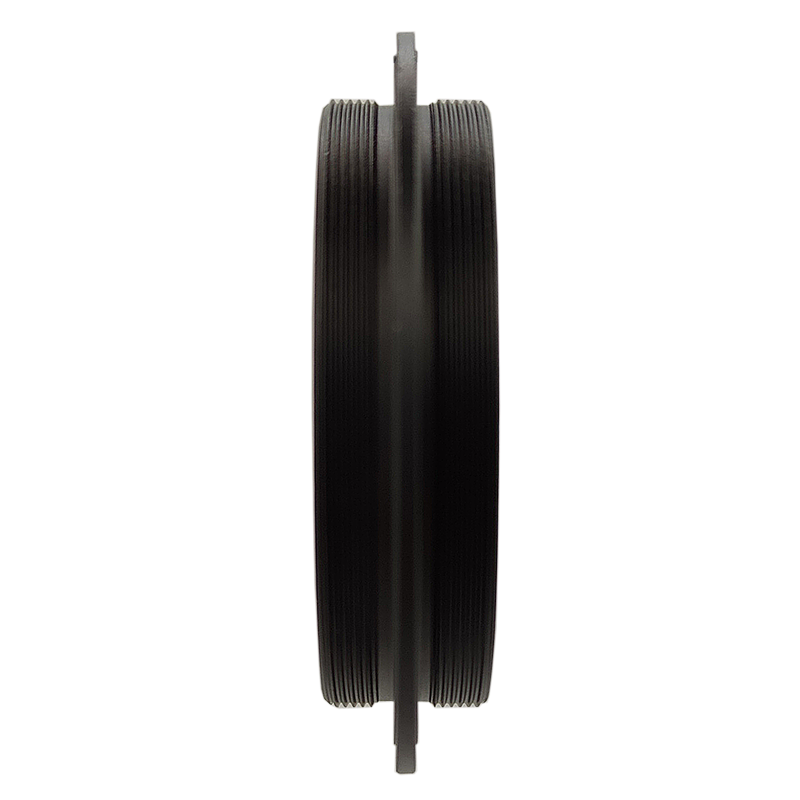

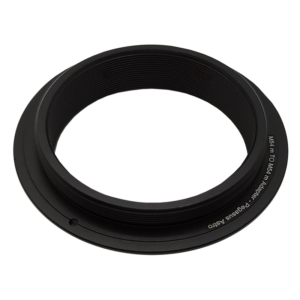

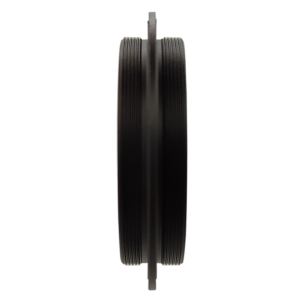

M54 Male to M54 Male (inner hole with M48)
SKU: PEG-ADAPT-M54M-M54M
- Adapter Thickness: 2.0mm
- Thread: Pitch 0.75mm / 4 mm length
- M54 side has a M48 internal thread
M65 Male to M54 Male (For SW Esprit 100)
SKU: PEG-ADAPT-M65M-M54M
- Takes up 2.0mm of backfocus
- Thread: Pitch M65/1.0mm, M54/0.75mm
- For SW ESPRIT 100: Connects Field Flatennera after the Falcon Rotator in order to reduce backfocus distance.
M66 Female to M54 Male (For SW Esprit 100)
SKU: PEG-ADAPT-M66F-M54M
- Thread: Pitch M66/1.0mm, M54/0.75mm
- Connects SW Esprit 100 Flatenner with any M54 threaded accessories
SW Esprit 100 + PEG-ADAPT-M66F-M54M + Pegasus Astro Indigo OAG + Pegasus Astro Indigo Filter Wheel + QHY268M Camera = 63mm optimal backfocus distance
M74 Female to M54 Male (For SW Esprit 100)
SKU: PEG-ADAPT-M74F-M54M
- Takes up 8.5mm of backfocus
- Thread: Pitch M74/1.0mm, M54/0.75mm
M68 Male to M65 Male (For SW Esprit 100)
SKU: PEG-ADAPT-M68M-M65M
- Thread: Pitch M68/1.0mm, M65/1.0mm
This adapter is suitable to connect the SW Esprit 100 Flattener with the Pegasus Astro Prodigy Microfocuser (You also need the optional PEG-PRDG-M68F adapter)
