Power Supply Units

Power Supply Unit 12V / 10A – 120W

Our sealed and certified switching power supply unit is the perfect match for our Pegasus Astro Products. It can provide 12V and up to 10Amps. (120W of total power). Low ripple and noise ensures that you will provide the required and correct “electric juice” to your precious equipment. Comes together with a power cord (1.5m) for your country type.

Please notice there are three (3) types of DC Cords (Choose wisely!)

XT60

XT60 (for Ultimate Powerbox v2 & v3)

SKU: PEG-PSU-XT60

2.1 mm

2.1mm (for Pocket Powerbox and any other Pegasus Products)

SKU: PEG-PSU-21

2.5 mm

2.5mm (for Ultimate Powerbox / DewMaster)

SKU: PEG-PSU-25

Available Country Power Cords

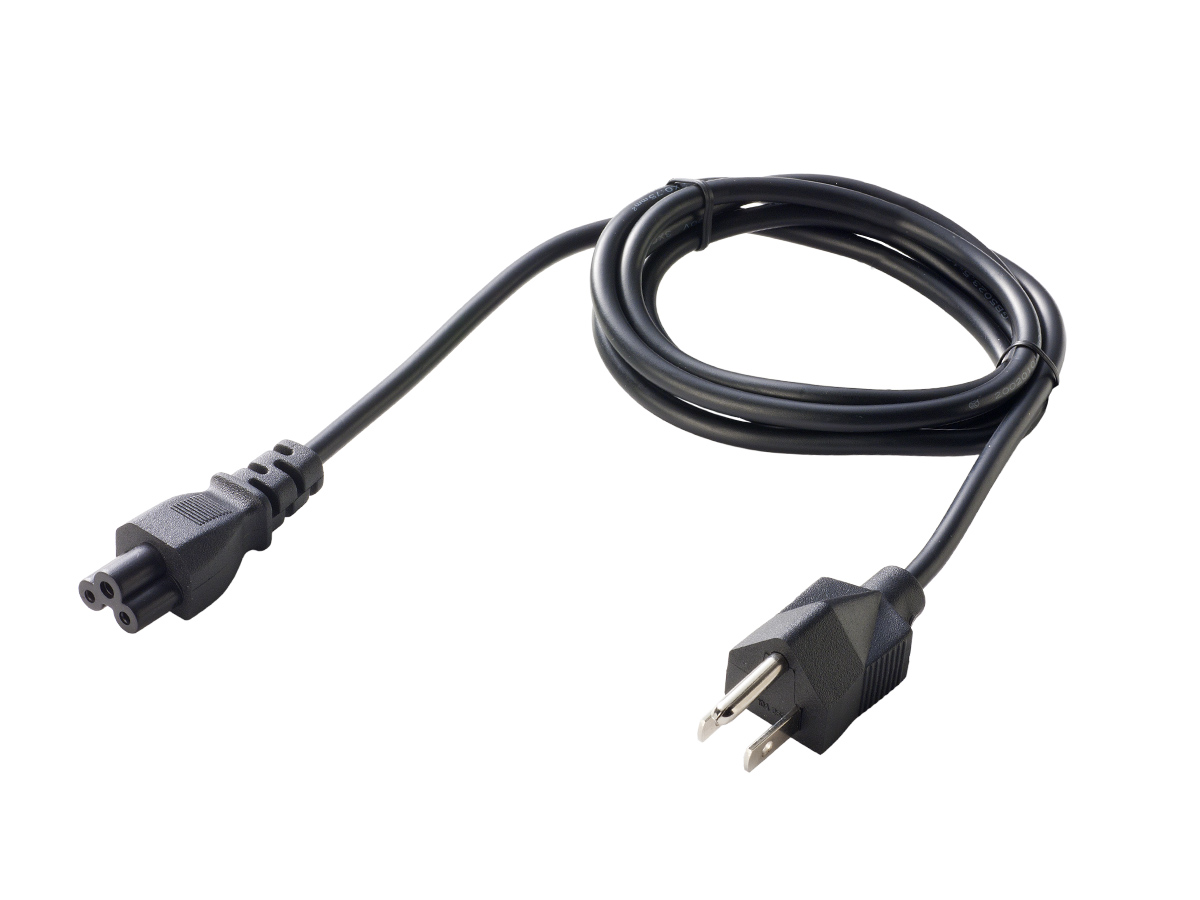

USA

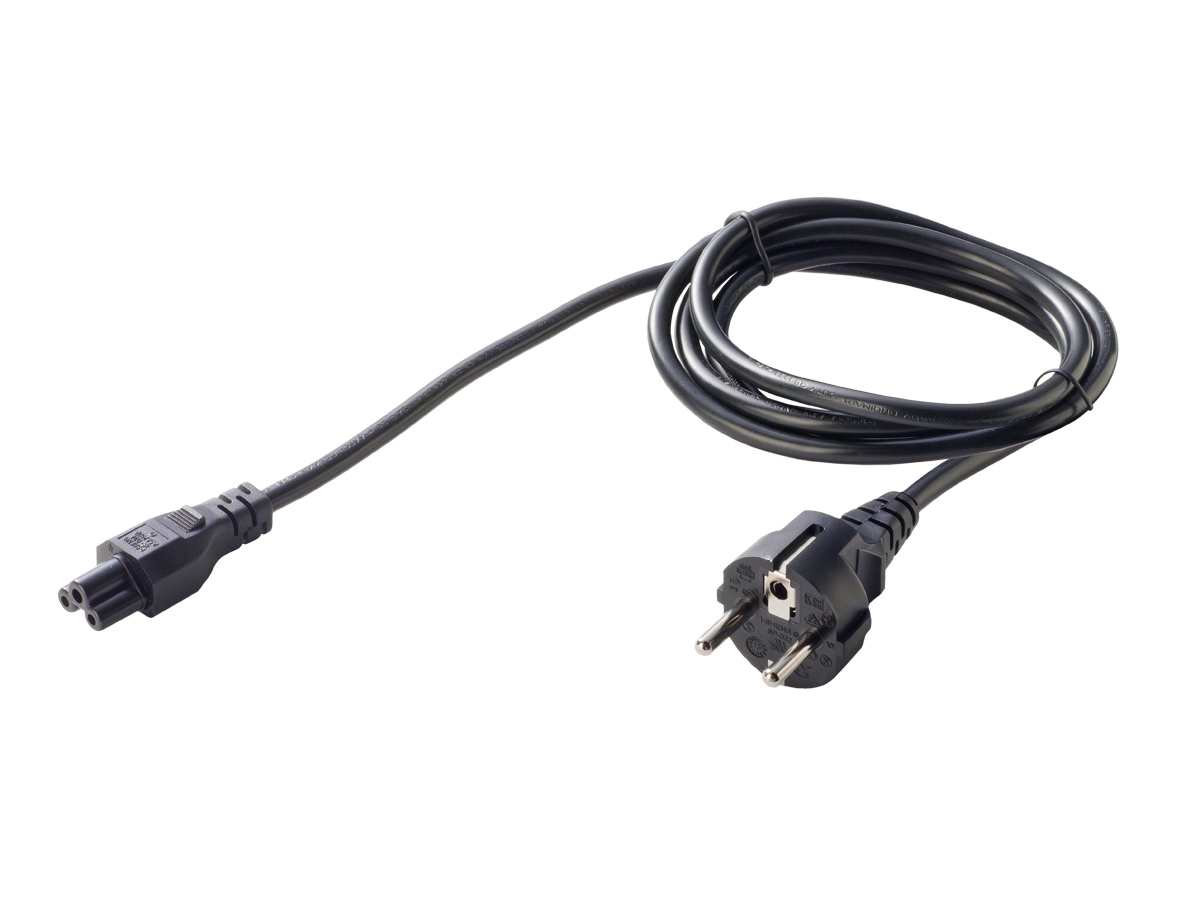

Europe

Great Britain (UK)

Australia

Protections

  • Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
  • Over Voltage: The power supply will be auto recovered when faults remove
  • Input protection: F1:6.3A 250V Fuse The power supply shall be protected against power line surges and any abnormal condition
  • No Load protection The power supply is provided with no load operation to prevent the power supply and system from damage.
  • Protection class I, (ITU-T K.21 Surge 6KV on request)

Certifications

Technical Specification

Type Value
Output Voltage: 12.5V
Loading: 0-10 Amps
Max. Power : 120 Watt
Input Voltage Range: 90-264V
Frequency: (47-63)Hz
Connector Size: 5.5 * 2.1mm or 5.5 * 2.5mm or XT60
Cord Length: 150cm / 5 feet
Regulated Output With Low Ripple Noise
Sealed / Protected Enclosure  humidity / dust cannot enter
Safety Agency Requirements and EMI/EMS Certified
Efficiency level (ErP)  VI
CE and FCC certificate acquired
Dimensions: 169 x 61 x 39 [mm]

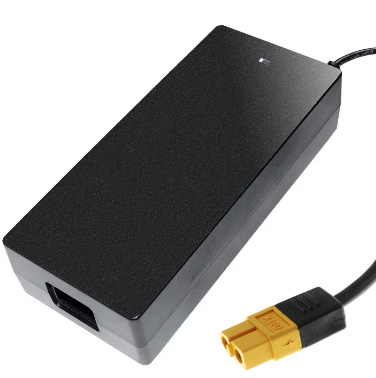

Power Supply Unit 12V / 20A – 240W – PEG-PSU-XT60H

Our high power, sealed and certified switching power supply unit is the perfect match for the Ultimate Powerbox v2, v3 and for high power demands! It can provide 12V and up to 20Amps. (240W of total power). Low ripple and noise ensures that you will provide the required and correct “electric juice” to your precious equipment. Comes together with a power cord (1.5m) for your country type.

Please notice that this PSU is an XT60 socket only version (PEG-PSU-XT60H)

Available Country Power Cords

USA

Europe

Great Britain (UK)

Australia

Protections

  • Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
  • Over Voltage: The power supply will be auto recovered when faults remove
  • Input protection: F1:6.3A 250V Fuse The power supply shall be protected against power line surges and any abnormal condition
  • No Load protection The power supply is provided with no load operation to prevent the power supply and system from damage.
  • Protection class I, (ITU-T K.21 Surge 6KV on request)

Certifications

Technical Specification

Type Value
Output Voltage: 12.5V
Loading: 0-20 Amps
Max. Power : 240 Watt
Input Voltage Range: 90-264V
Frequency: (47-63)Hz
Connector Size: XT60
Cord Length: 150cm / 5 feet
Regulated Output With Low Ripple Noise
Sealed / Protected Enclosure  humidity/dust cannot enter
Safety Agency Requirements and EMI/EMS Certified
Efficiency level (ErP)  VI
CE and FCC certificate acquired
Dimensions: 175 x 78 x 40 [mm], 0.62Kg

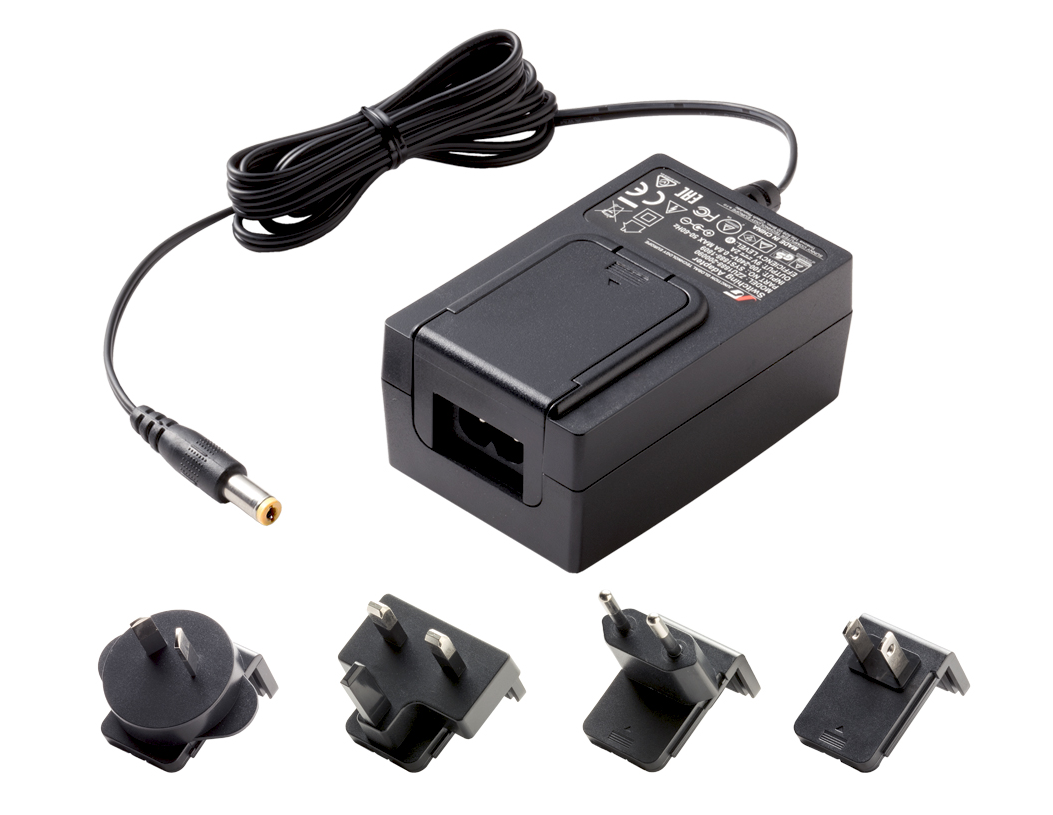

Power Supply Unit 12V / 1.5A

SKU: PEG-PSU1215

This PSU is suitable for the following products:

  • Falcon Rotator
  • FocusCube
  • Dual Motor Focus Controller

Certifications

Technical Specification

Type Value
Output Voltage 12V
Power 18W
Output Current 1,5A
Input Voltage 90 – 264V
Dimensions 64x27x76 (mm)
Cord 1.4m
Power Mains Adapter EU or US or UK or AUS (1 country type only provided in box)
